PRODUCT SPECIFICATION
Product Code --- WBA-2A Wide Band Omni Antenna

The WBO-2A-XX series are vertically polarized UHF Biconical antennae of
low-gain with wide band omni-directional pattern.

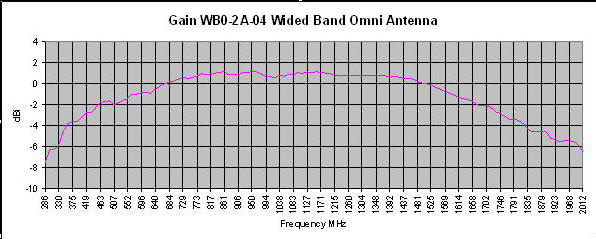

WBO-2A-04

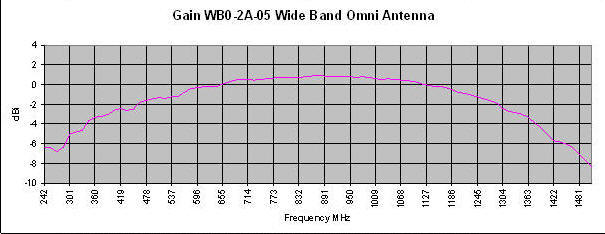

WBO-2A-05

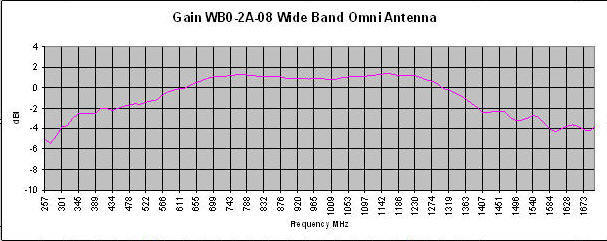

WBO-2A-08

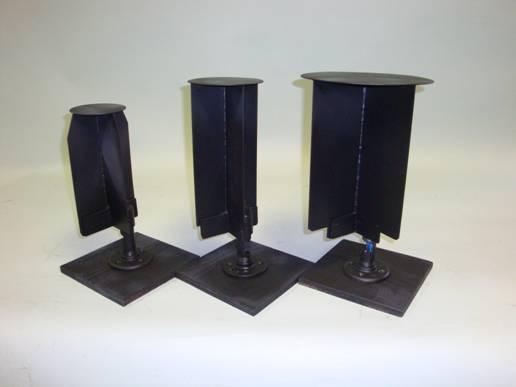

The antennas are made from FR-4 fiberglass and mounted by means of Standard NPT pipe.  The RF fitting is mounted in the center so as to be protective with the coax running down the pipe.

End View of Connector  Omni Pattern

RF Performance Specifications

Dimensions: 8
Frequency Coverage: 500 MHz to 1.7 GHz 400 MHz to 1.3 GHz 300 MHz to 1.2 GHz
Gain:

-2 to+1 dBi

RF connector:

BNC

Mechanical Specifications

Environments:

Operating: -40C to +60C, Storage: -40C to +70C
Humidity: 95%

Ordering Information

Part #

Size/Range

WBO-2A-04

4" - 500 to 1700 MHz

WBO-2A-05

5" - 400 to 1300 MHz

WBO-2A-08

8" - 300 to 1200 MHz

Downloadable PDF File
Printed in U.S.A. Copyright 2/1/2011
One year warranty on parts and labor
