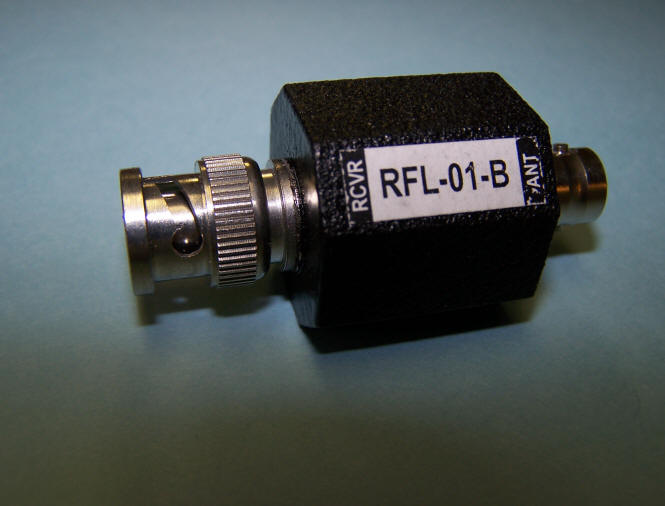

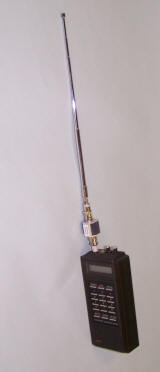

RF Limiter   - 2 models - BNC - # RFL-01-B, and TNC - RFL-02-T  Downloadable PDF Version





   Protects receivers and multicouplers from being destroyed by too much input power or static charge buildup at the antenna.

   Protects receiving systems on a continuous basis as long as the transmitting and receiving antennas are not placed closer than the following spacing:

At least 1 foot from a 5 watt transmitter

At least 3 feet from a 25 watt transmitter

At least 5 feet from a 40 watt transmitter





Absorbs an average of 1 watt and has been tested for 5 continuous seconds with direct input from a 25 watt transmitter.

   Has minimum loss, so there should be no noticeable effect on signal quality. The limiter does not turn on until the input reaches +25 dBm (about Watt). 3rd order intermod will only be generated during times of extreme overload when the device is active.

   Phase shift is +/- 2 degrees maximum

Freq. Range: 40 to 1300 MHz
VSWR: 2.0:1
Insertion Loss: 2 dB max 45 to 1,000 MHz:   3 dB max 40 to 1,300 MHz
Power: 1 Watt average            5 Seconds @ 25 Watts
  BNC -  RFB-01B,  TNC - RFB-01T

Downloadable PDF Version
