Product Code --- DLP-4620A1 MOBILE DF ANTENNA
(for use with RDF Products DFP 1000B processor)
PDF File for this product



DLP-4620A1 Mobile DF Antenna

An Accurate, Compact Antenna for Mobile Operations

 Description:

The DLP-4620A1 Mobile DF Antenna is a combination (UHF & L Band) antenna, consisting of four vertically polarized log periodic elements enclosed in a vacuum ­formed, ruggedized, compact, lightweight, abrasive-resistant plastic cover with UV protection.  The DLP-4620A1 is designed to receive vertically polarized signals in the 600 MHz to 3 GHz frequency range providing accurate and repeatable bearings.

The antenna enclosure is designed to be mounted on a steel vehicle roof.  Magnetic mounts are attached to the base to provide stability and facilitate quick and easy vehicle installation. Slots for safety straps are also included.

All power and control signals to the antenna are provided through one 8-conductor control cable from the DF processor. The received signal, with bearing information encoded, is routed to the receiver through a coaxial cable. Control signals are compatible with the DF Processor DFP 1000B produced by RDF Products of Vancouver, WA, USA.

Electrical Specifications

Frequency Coverage:   600 MHz - 3.0 GHz
Azimuths Coverage:   360°
DF Technique:   sequential
Antenna:    4-element log-periodic dipole array
Gain:    3  to 5 dBi
Bearing Accuracy:    5° rms
Power:   Voltage: 12 VDC supplied by processor
Polarization:    Vertical
Impedance:   50 ohms nominal
Bands:    One
Connectors:     TNC, and C091-31C008 100 2

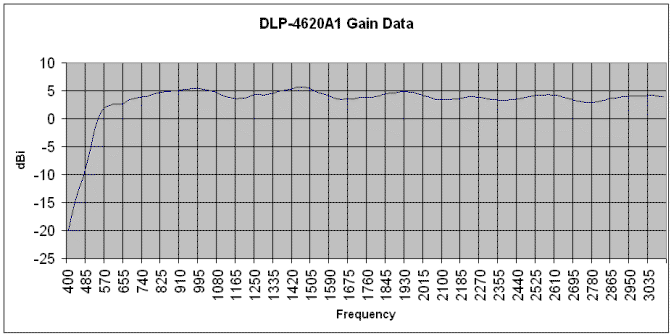

DLP-4620A1 Gain Curves

Mechanical Specifications

Dimensions:   Width: 20.5" (52 cm) x Length : 20.5" (52 cm) x Height: 12" (30 cm)
Weight:      15 Lbs
Environments:

Operating: -20°C to +50°C Storage: -40°C to +70°C
Humidity:95%

Material:   Aluminum, FR-4, Foam
Cover:   White PVC w/UV Protection

Features

Stable, rugged construction, in a compact and light weight design that works in harsh conditions.

Ordering Information
Antenna:   Model No. DLP-4620A1
Processor Required:   Model No. DFP 1000B

Specifications subject to change without notice

Printed in U.S.A. Copyright 5/1/2010
PDF File for this product


If you have a need for optimized frequency coverage not indicated here, please contact Ferrel  - info below - we can customize to your needs.
